| Basic Information | ||
|---|---|---|

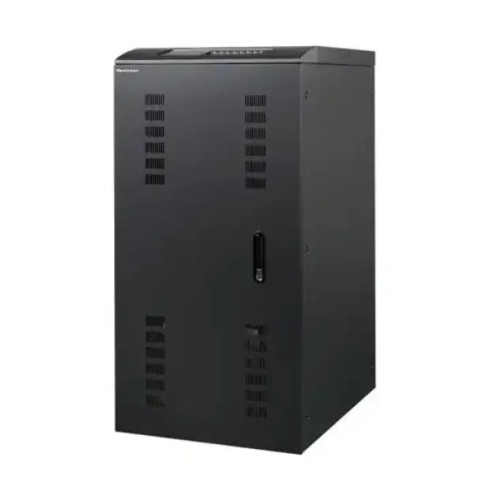

| Model | B4033 | |
| Capacity | 40kVA | |
| Type | Online UPS | |
| Overload | ≤110%/60min, ≤125%/10min, ≤150%/1min to Bypass | |
| LED Display | Input, Inverter, Bypass, Battery, Output, Status | |
| LCD Display | I/O voltage, frequency, power, power factor, battery voltage, current, battery status, load percentage, UPS status, history record | |
| Alarms | Battery low-voltage, mains abnormal, overload, UPS fault, over-temperature protection | |
| Others | Harmonic filter, SNMP adapter, LBS cables, battery temperature sensor, Bypass current-sharing inductor IGBT inverter and output isolation transformer Online double conversion Full DSP control N+X parallel redundancy EPO function Multi-protection User-friendly network management |
|
| Bypass | ||
| Rated Voltage | 380/400/415Vac | |
| Rated Frequency | 50/60Hz (Auto-sensing) | |
| Voltage Protection Range | Upper limit: +20% (+10%, +15%, +20% adjustable) Lower limit: -40% (-10%, -20%, -30%, -40% adjustable) | |
| Frequency Protection Range | ±10% (±2.5%, ±5%, ±10%, ±20% adjustable) | |
| Input | ||
| Voltage Range | 380/400/415Vac (-25% / +20%), (3Ph+N+PE) | |
| Frequency Range | 50/60Hz (±5%) | |
| Power Factor | ＞0.97 (with filter) | |
| Output | ||
| Voltage | 380/400/415±1％ Vac | |
| Power Factor | 0.8 | |
| Output Frequency | 50/60±0.5% Hz (Free oscillation) | |
| Crest Factor | 3:1 (Max) | |
| THDv | ＜2% (Linear load) | |
| Transfer Time | 0 ms | |
| Others | Efficiency: Up to 90.5% | |
| Battery | ||
| DC Voltage | 384Vdc | |
| Environment | ||
| Temperature | Working temperature: 0℃～40℃ Storage temperature: -25～55℃ |
|
| Humidity | 0～95% (non-condensing) | |
| Noise Level | <58 (within 1 meter) | |
| Others | Altitude: <1500m | |
| Communication | ||
| Interface | RS232, RS485, Dry contact (Optional), SNMP card (Optional) | |
| Standards | ||
| Safety | IEC/EN62040-1; IEC/EN60950-1 | |
| Performance | IEC 62040-3 | |
| EMC | IEC/EN62040-2; IEC61000-4-2; IEC61000-4-3; IEC61000-4-4; IEC61000-4-5; IEC61000-4-6; IEC61000-4-8；IEC 61000-4-11 | |
| Dimension | 430×830×1100 (approx.) | |
| Weight | 242 Kgs (approx.) | |
| Warranty | ||
| Warranty Details | 1 Year | |
