| Basic Information | ||
|---|---|---|

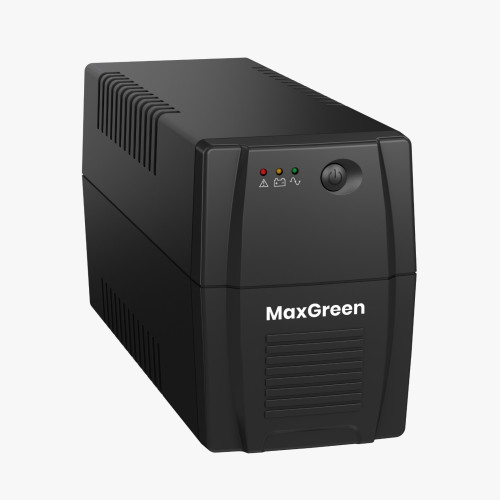

| Model | MG-LI-KSP-1200VA | |
| Capacity | 1200VA | |
| Load Capacity | 720Watt | |
| Input Voltage Range | 140-290 VAC | |
| Output Voltage | 220/230 VAC (normal mode) | |
| Output Frequency | 50 Hz/60 Hz ±1 Hz (battery mode) | |
| Input Features | ||
| Nominal voltage (Vac) | 140-290 VAC | |
| Voltage range (Vac) | 220/230 VAC | |
| Frequency (HZ) | 50 Hz/60 Hz (auto-sensing) | |
| Output Features | ||
| Voltage(V) | 220/230 VAC | |
| Frequency (HZ) | 50 Hz/60 Hz ±1 Hz (battery mode) | |
| Voltage Regulation | ±10% | |
| Transfer Time | 2-6 ms typical | |
| Waveform | Simulated sine wave | |
| Crest Factor | Yes | |
| Output socket | 3 Universal Output | |
| Safety | Battery low voltage | |
| Battery & Backup | ||
| Battery Type | Maintenance free sealed lead acid battery | |
| Battery Capacity | 12 V/7.5 Ah x 2 | |
| Backup Time | Up to 30 minutes depending on load | |
| Charge Time | 4-6 hours recover to 90% capacity | |
| Others | ||
| Display | LED display: Green Led: normal main, battery mode | |
| Alarm | Acoustics: Battery mode, low battery, battery change, overload and fault | |
| Manufacture Warranty | ||
| Warranty | 1 year with service | |
