| Basic Information | ||
|---|---|---|

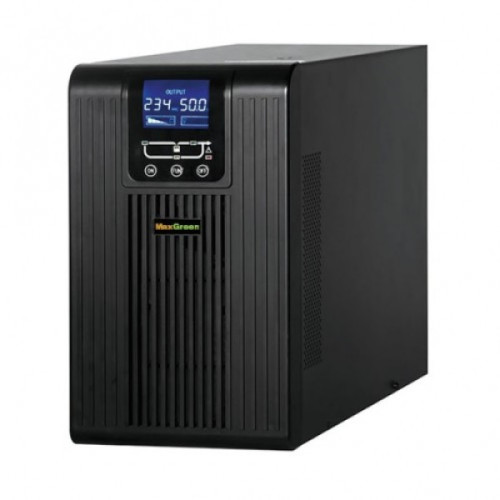

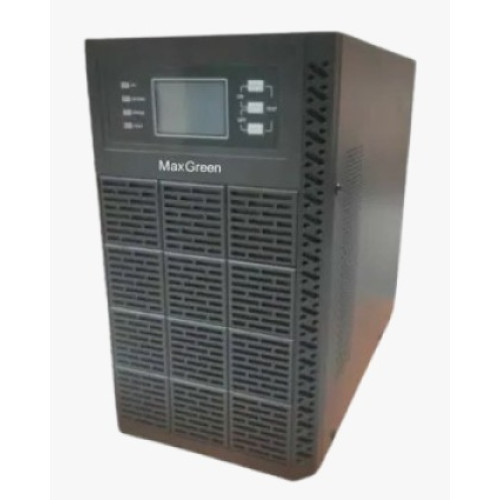

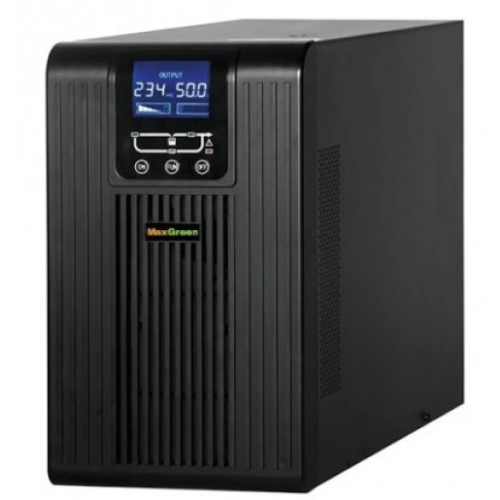

| Model | W6KLE | |
| Capacity | 6 KVA | |
| Input | ||
| Nominal Voltage | 208/220/230/240 Vac | |
| Voltage Range | 110–300 Vac | |
| Frequency Range | 40–70 Hz (Auto Sensing 50/60 Hz) | |
| Power Factor | ≥ 0.99 | |
| Output | ||
| Voltage | 208/220/230/240 Vac | |
| Power Factor | 0.9 | |
| Voltage Regulation | ±1% | |
| Output Frequency | 50/60 Hz ± 0.1% | |
| Crest Factor | 3:1 | |
| THDv | ≤ 3% (Linear Load), ≤ 5% (Non-linear Load) | |
| Transfer Time | 0 ms (AC to Battery), 4 ms (Inverter to Bypass) | |
| Efficiency | ||
| AC Mode | 90% | |
| Battery Mode | 87% | |
| Battery | ||
| DC Voltage | 192-240V (192V default) | |
| Configuration | 16 × External Batteries | |
| Charging Current | 6A | |
| Recharge Time | 8–10 Hours | |
| Environment | ||
| Temperature | 0 ~ 40°C | |
| Humidity | 0 ~ 90% (Non-condensing) | |
| Noise Level | ≤ 50 dB (at 1 meter) | |
| Communication | ||
| Interface | RS232 (Standard), USB (Optional) | |
| OS Support | Windows, Linux, Mac, FreeBSD | |
| SNMP (Optional) | Web & SNMP Power Management | |
| Alarms | ||
| Battery Mode | Beeps Every 4 Seconds | |
| Low Battery | Beeps Every 1 Second | |
| Overload | Beeps Twice Every 1 Second | |
| UPS Fault | Continuous Beep | |
| Warranty | ||
| Warranty Details | 1 Year | |
