| Basic Information | ||
|---|---|---|

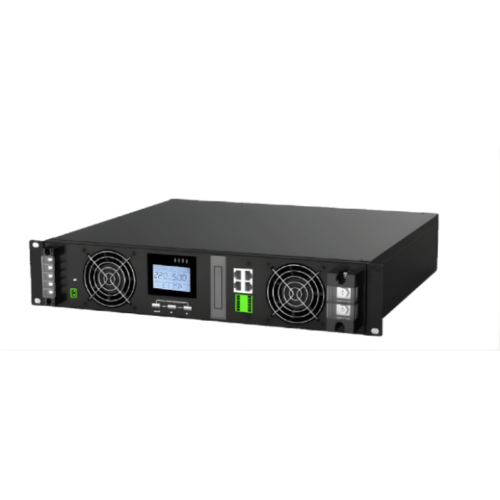

| Model | MGOE-W6KLRLi | |
| Capacity | 6 KVA | |
| Type | Online UPS | |
| Overload | Inverter overload 105% < load ≤ 125%: transfer to bypass after 5 min; 125% < load ≤ 150%: transfer after 1 min; load > 150%: transfer after 1 s Bypass overload 105% < load ≤ 125%: cut off output after 5 min; 125% < load ≤ 150%: cut off after 1 min; load > 150%: cut off after 1 s |
|
| LED Display | YES | |
| LCD Display | YES | |
| Alarms | YES | |
| Bypass | ||
| Rated Voltage | −30% to +20% (settable) | |
| Others | Total harmonic distortion ≤ 5% | |
| Input | ||
| Nominal Voltage | 220 / 230 / 240 VAC | |
| Voltage Range | 176–280 VAC | |
| Frequency Range | +4 Hz / −6 Hz (settable) (Rated frequency: 50/60 Hz) | |
| Power Factor | ≥ 0.99 | |
| Output | ||
| Voltage | 220 / 230 / 240 VAC | |
| Power Factor | 0.9 | |
| Voltage Regulation | ±1% | |
| Output Frequency | 50/60 Hz ± 0.1% | |
| Crest Factor | 3:1 | |
| THDv | ≤2% (linear load); ≤5% (non-linear load) | |
| Transfer Time | 0 ms (AC to Battery), 4 ms (Inverter to Bypass) | |
| Efficiency | ||
| AC Mode | 95% | |
| Battery Mode | 94% | |
| Battery | ||
| DC Voltage | 48VDC | |
| Charging Current | 10 A default (max. 60 A, settable) | |
| Others | Charging efficiency: 93% | |
| Environment | ||
| Temperature | −20°C to 50°C (≤45°C at 100% load; 50°C at 90% load) | |
| Humidity | 0%–95% (non-condensing) | |
| Noise Level | ≤55 dB | |
| Others | Altitude: ≤1000 m; derating 1% for each additional 100 m Storage temperature: 40°C to 70°C (without battery) |
|
| Communication | ||
| Interface | RS485 (standard), BMS (standard) | |
| Others | EPO (optional), Parallel connection (optional) | |
| Alarms | ||
| Battery Mode | Yes | |
| Low Battery | Yes | |
| Overload | Yes | |
| UPS Fault | Yes | |
| Standards | ||
| Safety | Short-circuit protection:Mains/battery mode: automatic current limit; bypass mode: fuse protection Short-circuit, overload, output over/under voltage, battery low voltage, battery reverse connection, overtemperature, etc. |
|
| Dimension | 442 × 425 × 88.8 mm | |
| Weight | 12 kg | |
